Vagrant

Vagrant is an open-source tool used for managing virtualized development environments. It simplifies the process of setting up, configuring, and managing virtual machines (VMs) by providing a consistent, repeatable, and portable environment.

Here’s how Vagrant works and some of its key features:

Key Concepts:

• Vagrantfile: At the heart of a Vagrant environment is the Vagrantfile, a configuration file written in Ruby that defines the properties of the virtual machine (VM). It specifies things like the base image (called a "box"), networking, and other settings.

• Boxes: These are pre-configured base images for virtual machines. Vagrant uses these to quickly set up environments. You can find boxes for different operating systems or configurations on Vagrant Cloud.

• Providers: Vagrant uses "providers" to manage the virtual machines. The most common provider is VirtualBox, but Vagrant also supports other providers like VMware, Hyper-V, and Docker.

• Provisioners: Vagrant can use "provisioners" like shell scripts, Chef, Puppet, and Ansible to automatically configure the machine after it has been booted.

Workflow:

1. Initialize a Project: You start by creating a Vagrantfile with vagrant init, which generates a basic configuration file.

2. Up: The vagrant up command brings up the VM. Vagrant checks the Vagrantfile for configuration settings, fetches the necessary box, and boots up the virtual machine.

3. SSH Access: Once the VM is running, you can use vagrant ssh to SSH into the machine and work within that environment.

4. Provisioning: If you have defined any provisioning scripts, they will run during the vagrant up process, or you can manually trigger them with vagrant provision.

5. Suspend/Destroy: You can suspend the machine (vagrant suspend) to save its state or destroy it entirely (vagrant destroy) when you no longer need it.

Benefits:

• Consistency: All developers on a project can share the same development environment, avoiding the "it works on my machine" problem.

• Automation: Vagrant automates the setup and provisioning of environments, saving time and reducing manual setup errors.

• Portability: A Vagrant environment can be easily shared with others, allowing the same environment to be used across different systems.

Example: Set up multiple VMs using Vagrant.

- Set up two (ubuntu) VMs in a private network and also install java11, maven, git in each VM using Vagrant.

- Using this setup two developers (two VMs) on a project share the same development environment, avoiding the "it works on my machine" problem.

Step 1: Install Vagrant and VirtualBox (or any other provider)

Step 2: Create a directory where your Vagrant configuration will reside

mkdir multi-vm-setup

cd multi-vm-setup

Step 3: Initialize Vagrant

vagrant init

It will create a basic Vagrantfile

Step 4: Modify the Vagrantfile to define multiple virtual machines

Vagrant.configure("2") do |config|
  # Define the first VM: Virtual Machine 1
  config.vm.define "vm1" do |vm1|
    vm1.vm.box = "ubuntu/bionic64"    # Base box for the vm1
    vm1.vm.hostname = "virtual-machine-1"    # Hostname
    vm1.vm.network "private_network", type: "dhcp" # Private network with DHCP
    vm1.vm.provider "virtualbox" do |vb|
      vb.memory = "1024"              # Allocate 1GB memory
    end

    # Install OpenJDK, Maven, and Git with a shell script in VM
    vm1.vm.provision "shell", inline: <<-SHELL
      sudo apt-get update
      # Install OpenJDK
      sudo apt-get install -y openjdk-11-jdk
      # Install Maven
      sudo apt-get install -y maven
      # Install Git
      sudo apt-get install -y git
    SHELL
  end

  # Define the first VM: Virtual Machine 2
  config.vm.define "vm2" do |vm2|
    vm2.vm.box = "ubuntu/bionic64"    # Base box for the vm2
    vm2.vm.hostname = "virtual-machine-2"    # Hostname
    vm2.vm.network "private_network", type: "dhcp" # Private network with DHCP
    vm2.vm.provider "virtualbox" do |vb|
      vb.memory = "1024"              # Allocate 1GB memory
    end

    # Install OpenJDK, Maven, and Git with a shell script in VM
    vm2.vm.provision "shell", inline: <<-SHELL
      sudo apt-get update
      # Install OpenJDK
      sudo apt-get install -y openjdk-11-jdk
      # Install Maven
      sudo apt-get install -y maven
      # Install Git
      sudo apt-get install -y git
    SHELL
  end

end

Breakdown

• config.vm.define "vm1" do |vm1|: Defines the VM with a box (ubuntu/bionic64), sets the hostname, and configures network settings.

• vm1.vm.provider "virtualbox": Allocates memory for each VM.

• You can add more VMs by repeating the config.vm.define block for additional machines.

• Each VM is connected to the same private network via DHCP.

Step 5: Start all VMs

vagrant up

Step 6: Interact with a specific VM

vagrant ssh vm1   # Access the virtual machine 1

vagrant ssh vm2   # Access the virtual machine 2

Now, you’re inside the virtual machines and can start working in the development environment.

Step 7: Shut down all VMs

vagrant halt

Step 8: Destroy all VMs (if you want to remove them)

vagrant destroy

👉 I would prefer using any configuration management tool like Ansible (rather using Vagrant) to setup same development environments (e.g. same JDK version, Maven version etc) on multi VMs for the team.

Ansible

Ansible is an open-source automation tool that simplifies tasks like configuration management, application deployment, and task automation across a large number of servers or devices. It is designed to be simple, agentless, and efficient, allowing administrators to manage infrastructure through code.

Key Features

1. Agentless: Ansible doesn't require any software (agents) to be installed on the remote systems it manages. It uses SSH (Secure Shell) for communication.
2. Declarative Language: Ansible uses YAML (Yet Another Markup Language) for its playbooks, making the automation easy to read and understand.
3. Idempotency: Tasks executed through Ansible are idempotent, meaning they can be run multiple times without changing the system if it's already in the desired state.
4. Modules: Ansible provides a wide range of pre-built modules for managing different systems (Linux, Windows, networking devices) and services (databases, cloud providers, etc.).
5. Inventory: It maintains a list of systems it manages, which can be static (defined in a file) or dynamic (fetched from external sources like cloud APIs).
6. Playbooks: These are sets of instructions written in YAML that define what tasks Ansible should perform on the managed systems.

Basic Terminology

• Playbook: A YAML file containing instructions (plays) to be executed on managed hosts.
• Task: A single operation within a playbook, such as installing a package or starting a service.
• Role: A way to organize playbooks and tasks by function or responsibility, improving code reusability.
• Inventory: A list of hosts that Ansible manages, which can be grouped for easier management.
• Ad-hoc Commands: One-off commands that can be executed without creating a playbook.

Typical Use Cases

• Configuration Management: Keeping servers in a consistent state (e.g., installing software packages, managing configuration files).
• Application Deployment: Automating the deployment of applications across environments.
• Cloud Provisioning: Managing cloud infrastructure (e.g., provisioning instances on AWS, Azure, or GCP).
• Orchestration: Coordinating multiple tasks across different systems in a specific order (e.g., managing a multi-tier application stack).

Example: Setting up Java, Maven, Git, and MySQL on two EC2 instances using Ansible.

Prerequisites: Ansible, AWS CLI, AWS Access and Secret Keys

First, login to AWS account from AWS CLI with 'aws configure' command

mkdir ansible_workspace

cd ansible_workspace

Step 1: Create an inventory file name hosts

- The inventory file lists the hosts (EC2 instances in this case) which will be managed by ansible.

- You must have your pem file of your AWS account to SSH to remote EC2 instances

[my_aws_ec2_instances]

65.0.215.170 ansible_ssh_user=ubuntu ansible_ssh_private_key_file=./keypair.pem

13.234.131.54 ansible_ssh_user=ubuntu ansible_ssh_private_key_file=./keypair.pem

This file defines a group called my_aws_ec2_instances that includes two servers.

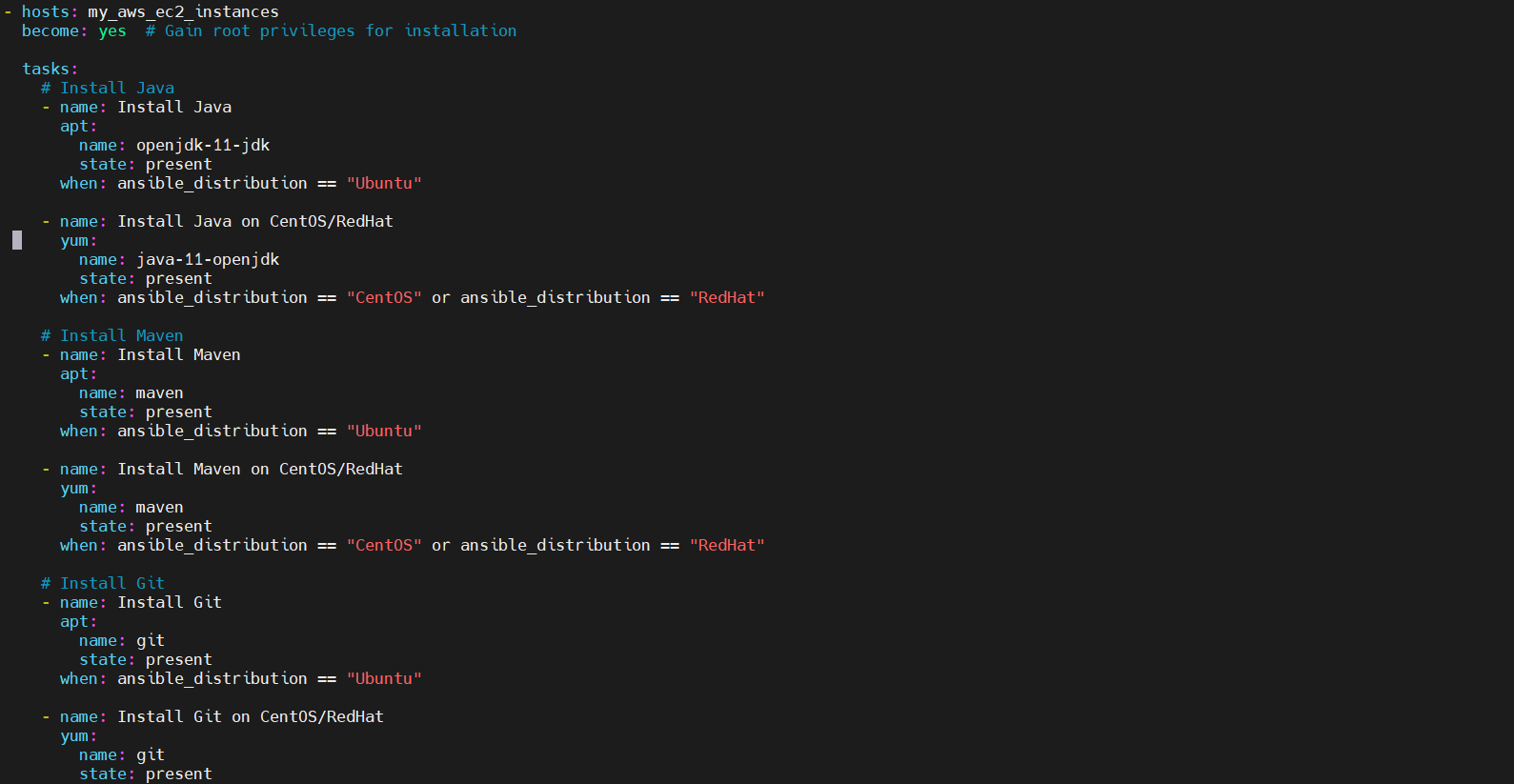

Step 2: Create a playbook setup.yaml

- A playbook is a YAML file containing a series of tasks.

- This playbook do setup (installation) on various EC2 operating systems such as Ubuntu, CentOS and Redhat.

- hosts: my_aws_ec2_instances

  become: yes  # 👉 Gain root privileges for installation

  tasks:

    # Install Java

    - name: Install Java

      apt:

        name: openjdk-11-jdk

        state: present

      when: ansible_distribution == "Ubuntu"

    - name: Install Java on CentOS/RedHat

      yum:

        name: java-11-openjdk

        state: present

      when: ansible_distribution == "CentOS" or ansible_distribution == "RedHat"

    # Install Maven

    - name: Install Maven

      apt:

        name: maven

        state: present

      when: ansible_distribution == "Ubuntu"

    - name: Install Maven on CentOS/RedHat

      yum:

        name: maven

        state: present

      when: ansible_distribution == "CentOS" or ansible_distribution == "RedHat"

    # Install Git

    - name: Install Git

      apt:

        name: git

        state: present

      when: ansible_distribution == "Ubuntu"

    - name: Install Git on CentOS/RedHat

      yum:

        name: git

        state: present

      when: ansible_distribution == "CentOS" or ansible_distribution == "RedHat"

    # Install MySQL

    - name: Install MySQL

      apt:

        name: mysql-server

        state: present

      when: ansible_distribution == "Ubuntu"

    - name: Install MySQL on CentOS/RedHat

      yum:

        name: mysql-server

        state: present

      when: ansible_distribution == "CentOS" or ansible_distribution == "RedHat"

    # Start and enable MySQL service

    - name: Start and enable MySQL service

      service:

        name: mysql

        state: started

        enabled: yes

      when: ansible_distribution == "Ubuntu"

    - name: Start and enable MySQL service on CentOS/RedHat

      service:

        name: mysqld

        state: started

        enabled: yes

      when: ansible_distribution == "CentOS" or ansible_distribution == "RedHat"

- The playbook will install Java, Maven, Git, and MySQL on EC2 instances.

Step 3: Running the playbook

sudo ansible-playbook -i hosts setup.yml

Step 4: Verify software installed on remote EC2 instances



👉 Difference between ansible, puppet and chef

Ansible, Puppet, and Chef are all popular configuration management tools, but they have key differences in terms of architecture, ease of use, language, and more. Here's a comparison across several aspects:

1. Architecture:

• Ansible:
  • Agentless: Ansible does not require any agent to be installed on the managed nodes. It uses SSH (or WinRM for Windows) to connect to systems.
  • Push Model: Ansible works by pushing configurations from the central machine (the control node) to the target nodes.
• Puppet:
  • Agent-Based: Puppet requires an agent to be installed on each managed node, which communicates with a central Puppet Master.
  • Pull Model: Nodes pull their configurations from the Puppet Master at regular intervals.
• Chef:
  • Agent-Based: Chef also requires an agent (the Chef Client) to be installed on each managed node, which communicates with a Chef Server.
  • Pull Model: Similar to Puppet, the Chef Client pulls its configurations from the Chef Server.

2. Ease of Use:

• Ansible:
  • Considered to be the easiest to learn and use due to its simple, human-readable YAML syntax. No need for complex infrastructure, and its agentless nature simplifies setup.
• Puppet:
  • More complex than Ansible. It uses its own declarative language called Puppet DSL, which requires more learning.
• Chef:
  • More complex and has a steeper learning curve due to the use of Ruby for writing configurations, known as recipes. Chef is often favored by developers familiar with Ruby.

3. Configuration Language:

• Ansible:
  • Uses YAML for its playbooks, which are easy to read and write. It’s declarative in nature.
• Puppet:
  • Uses Puppet DSL, a domain-specific language, to define configurations. It’s also declarative, meaning you define the desired state, and Puppet ensures that the system is configured accordingly.
• Chef:
  • Uses Ruby, a full-fledged programming language. This gives Chef more flexibility (imperative approach), but also makes it more complex for beginners.

4. Community and Ecosystem:

• Ansible:
  • Strong and growing community. Ansible Galaxy provides many reusable roles, and it integrates well with DevOps tools like Jenkins and Kubernetes.
• Puppet:
  • Puppet has a mature ecosystem and has been around for a longer time, resulting in a large collection of modules available in Puppet Forge.
• Chef:
  • Chef has a strong community and offers Chef Supermarket for cookbooks (reusable configurations). It also integrates well with the Chef ecosystem like Chef InSpec for security and compliance.

5. Performance:

• Ansible:
  • Ansible's performance can vary depending on the scale. For very large environments, the fact that it’s agentless (and uses SSH) might result in slower performance compared to agent-based systems.
• Puppet:
  • Being agent-based, Puppet is generally faster for large-scale environments since agents pull configurations periodically.
• Chef:
  • Similar to Puppet in performance for large-scale environments due to its agent-based model.

6. Flexibility:

• Ansible:
  • Ansible’s modularity allows for good flexibility, but it’s less programmatic than Chef since it’s mostly declarative.
• Puppet:
  • Puppet is declarative, which means it’s more suited for defining "what" the system should look like, not "how" to get there.
• Chef:
  • Chef is highly flexible and programmable due to its Ruby-based nature. You can define both the "what" and "how" with more precision, which is great for complex, dynamic infrastructures.

7. Use Cases:

• Ansible:
  • Suitable for smaller to medium-sized environments, DevOps automation, and continuous deployment. It’s often chosen for its simplicity.
• Puppet:
  • Suited for larger, more complex environments where scalability and frequent state enforcement are necessary.
• Chef:
  • Also suited for large environments, but more preferred in environments where developers are comfortable with Ruby and want more control over the configuration logic.

8. Learning Curve:

• Ansible: Low (easy to pick up for beginners, especially those with little programming experience).
• Puppet: Medium (requires learning Puppet DSL).
• Chef: High (requires knowledge of Ruby).

Summary Table:

Feature	Ansible	Puppet	Chef
Architecture	Agentless, Push	Agent-based, Pull	Agent-based, Pull
Language	YAML	Puppet DSL	Ruby
Ease of Use	Easy	Medium	Complex
Performance	Slower on large scale	Good for large scale	Good for large scale
Learning Curve	Low	Medium	High
Best For	Small/medium environments	Large environments	Large environments

In general:

• Ansible is a great starting point for those new to configuration management.
• Puppet is more mature and suitable for enterprises with complex needs.
• Chef is a good choice for developers looking for a more programmable, flexible tool.

Terraform

Terraform is an open-source infrastructure as code (IaC) tool created by HashiCorp. It enables users to define and provision infrastructure using declarative configuration files. With Terraform, you can manage various resources (like virtual machines, storage, networking, etc.) across a variety of cloud platforms (such as AWS, Azure, Google Cloud, etc.) as well as on-premises solutions.

Key Features

1. Declarative Language: Terraform uses its own domain-specific language (HCL - HashiCorp Configuration Language) to define infrastructure, where you declare what you want, and Terraform figures out how to achieve it.

2. Multi-cloud Support: It allows you to manage infrastructure across multiple providers (public and private clouds) in a unified way.

3. Plan and Apply: Before applying changes, Terraform creates an execution plan to preview what it will do. This ensures safety and reduces the risk of unintended changes.

4. State Management: Terraform maintains the state of your infrastructure in a state file. This is crucial because Terraform compares the desired state (in your configuration files) with the actual state of the infrastructure to determine the necessary actions.

5. Modular: You can break down your infrastructure into reusable modules, making your code more manageable, reusable, and easier to collaborate on.

Basic Workflow

1. Write: Define your infrastructure using configuration files (.tf files).
2. Plan: Run terraform plan to see what changes will be made to achieve the desired state.
3. Apply: Run terraform apply to implement the changes and provision the resources.
4. Destroy: Run terraform destroy to remove all resources that were created.

Example: Create resources an AWS EC2 instance, a security group, a subnet and a VPC using Terraform (IaC)

Prerequisites: Install Terraform, AWS CLI

First, login to AWS account from AWS CLI with 'aws configure' command

mkdir terraform_workspace

cd terraform_workspace

Step1: Create a file vpc.tf and define the VPC, Subnet, and Security Group

# Create a VPC

resource "aws_vpc" "my_vpc" {

  cidr_block = "10.0.0.0/16"

  tags = {

    Name = "MyVPC"

  }

}

# Create a public subnet

resource "aws_subnet" "my_subnet" {

  vpc_id            = aws_vpc.my_vpc.id

  cidr_block        = "10.0.1.0/24"

  availability_zone = "ap-south-1a"

  map_public_ip_on_launch = true

  tags = {

    Name = "MySubnet"

  }

}

# Create a security group to allow SSH inbound and ALL outbound traffic

resource "aws_security_group" "my_security_group" {

  vpc_id = aws_vpc.my_vpc.id

  # Inbound rule: Allow SSH from anywhere

  ingress {

     description = "Allow SSH inbound"

     from_port = 22

     to_port = 22

     protocol = "tcp"

     cidr_blocks = ["0.0.0.0/0"] # Allow access from any IP

  }

  # Outbound rule: Allow all traffic to anywhere

  egress {

      description = "Allow ALL outbound"

      from_port = 0

      to_port = 0

      protocol = "-1"

      cidr_blocks = ["0.0.0.0/0"] # Allow access to any IP

  }

  tags = {

    Name = "MySecurityGroup"

  }

}

Step2: Create a file main.tf and associate a EC2 instance with the VPC, subnet, and security group

provider "aws" {

  region = "ap-south-1"

}

# Create an EC2 instance in the public subnet, using the security group

resource "aws_instance" "my_ec2" {

  ami               = "ami-0522ab6e1ddcc7055"

  instance_type     = "t2.micro"

  subnet_id         = aws_subnet.my_subnet.id

  security_groups   = [aws_security_group.my_security_group.id]

  tags = {

    Name = "MyEC2Instance"

  }

}

# Output the public IP of the EC2 instance

output "instance_public_ip" {

  value = aws_instance.my_ec2.public_ip

}

Step 3: Initialize Terraform

Before Terraform can provision resources, you need to initialize the working directory, which downloads the provider plugins (in this case, for AWS)

terraform init

This will download necessary providers and prepare the environment.

Step 4: Preview the Infrastructure

This will preview an execution plan, detailing what will be created or changed

terraform plan

Step 5: Apply the Configuration

Run the following commands to deploy the VPC, subnet, security group, and EC2 instance

terraform apply

You’ll be prompted to confirm the action. Type yes to proceed.

Step 6: Verify the created EC2 Instance, Security Group (with defined Inbound, Outbound traffic), Subnet and VPC in AWS

Go to the AWS Management Console, navigate to the EC2 dashboard, and you should see the new instance running.

Step 7: Clean Up the Resources

You can destroy all the resources created by Terraform by running

terraform destroy

This example shows the basics of using Terraform to define, provision, and manage infrastructure in AWS. You can extend this by adding more resources, variables, and modules to create complex infrastructures.

👉 Difference between Terraform and AWS CloudFormation

• Terraform:

  • Supports multiple cloud providers (AWS, Azure, Google Cloud, etc.) and third-party services.
  • Uses HCL (HashiCorp Configuration Language), offers strong modularity and reusable modules.
  • Requires managing a state file for tracking infrastructure.
  • Excellent for multi-cloud and hybrid environments.
  • Larger community and more diverse ecosystem.

• CloudFormation:

  • AWS-only tool, tightly integrated with AWS services.
  • Uses JSON/YAML, no need to manage a state file (AWS handles it).
  • Supports change sets and rollback for safer deployments.
  • Good for AWS-native setups with deep integration.
  • Less flexible, but perfect for users fully within AWS.

In short: Terraform is ideal for multi-cloud setups and flexibility, while CloudFormation is best for AWS-centric environments and ease of AWS management.

AWS CloudFormation

AWS CloudFormation is a service provided by Amazon Web Services (AWS) that enables developers and system administrators to create, manage, and provision AWS resources using Infrastructure as Code (IaC). It allows you to define your infrastructure in JSON or YAML templates, which are then used to automatically provision, configure, and update AWS services and resources.

Key Features

1. Templates as Code: Infrastructure is defined using JSON or YAML templates, making it version-controllable and replicable across different environments.

2. Stack Management: A "stack" is a collection of AWS resources that you manage as a single unit. CloudFormation automates the process of creating, updating, and deleting these stacks.

3. Drift Detection: CloudFormation can detect if the actual configuration of AWS resources in a stack has deviated from the configuration defined in the template (called "drift").

4. Resource Dependencies: CloudFormation automatically handles dependencies between resources. For example, if a database instance needs to be created before an application server, CloudFormation ensures the correct order.

5. Update and Rollback: Stacks can be updated in a controlled manner, and if something goes wrong, CloudFormation supports rolling back to a previous known good state.

6. Cross-Stack References: You can share resources across different stacks, which improves modularity and reusability.

7. AWS Service Support: CloudFormation supports a wide range of AWS services, including EC2, S3, RDS, Lambda, and more.

Basic Concepts

• Template: The core of CloudFormation, a JSON or YAML file that describes your resources and their configurations.

• Stack: A collection of resources defined in a CloudFormation template. When you create a stack, CloudFormation provisions and configures the resources.

• Change Set: A preview of the changes that CloudFormation will make when you update a stack. It allows you to review potential modifications before applying them.

Template (YAML)

AWSTemplateFormatVersion: '2010-09-09'
Resources:
  MyEC2Instance:
    Type: 'AWS::EC2::Instance'
    Properties:
      InstanceType: t2.micro
      ImageId: ami-0abcdef1234567890

In this example, a basic EC2 instance is created using the specified instance type and image ID.

Use Cases

• Automating Infrastructure: Create, update, and manage infrastructure as code in a repeatable way.

• Environment Consistency: Deploy the same infrastructure across multiple environments (e.g., development, staging, production).

• Resource Management: Easily manage and track changes to infrastructure over time.

Example: Create a simple CloudFormation template (a YAML file) that provisions an AWS S3 bucket and an EC2 instance and then use AWS CLI to deploy this stack

Step1: Create a CloudFormation template MyInfraSetupTemplate.yaml

AWSTemplateFormatVersion: '2010-09-09'
Description: CloudFormation template to import an EC2 instance with existing VPC and Subnet.
Resources:
  MyEC2Instance:
    Type: 'AWS::EC2::Instance'
    Properties:
      InstanceType: t2.micro
      KeyName: keypair  # Ensure that this key pair exists
      SecurityGroupIds:
        - sg-073d0796e4533ade8  # <-- Replace with your existing Security Group ID
      SubnetId: subnet-01647f388348b7bbc  # <-- Replace with your existing Subnet ID
      ImageId: ami-0522ab6e1ddcc7055  # <-- Replace with the correct AMI ID for your region

    DeletionPolicy: Retain

  MyS3Bucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: siraj-test-bucket

Step2: Validate the CloudFormation template

aws cloudformation validate-template --template-body file://MyInfraSetupTemplate.yaml

If the template is valid, you’ll see a confirmation message. Otherwise, it will point out issues.

Step3: Create a CloudFormation stack

aws cloudformation create-stack \
    --stack-name MyStack \
    --template-body file://MyInfraSetupTemplate.yaml \
    --capabilities CAPABILITY_IAM

The --capabilities CAPABILITY_IAM flag is necessary if the template involves IAM resources, although it's not needed in this S3 bucket example.

Step4: You can check CloudFormation stack creation progress

aws cloudformation describe-stack-events --stack-name MyStack

Step5: You can update CloudFormation stack (if needed)

aws cloudformation update-stack \
    --stack-name MyStack \
    --template-body file://MyInfraSetupTemplate.yaml

Step6: You can see the created resources a S3 bucket and an EC2 instance running.

Step7: Delete CloudFormation stack and all its resources

aws cloudformation delete-stack --stack-name MyStack

AWS Lambda

AWS Lambda is a serverless computing service that lets you run code without provisioning or managing servers. It automatically scales applications in response to traffic, making it ideal for certain workloads and architectures.

How AWS Lambda Works

• Event-driven: Lambda runs your code in response to various events, such as an HTTP request (via API Gateway), changes in an S3 bucket, updates to a DynamoDB table, or periodic scheduled events (CloudWatch).

• Functions: You write your code in the form of a "Lambda function," and Lambda executes this function in response to specific triggers.

• Serverless: Lambda abstracts away server management. You don't need to worry about scaling, patching, or maintaining infrastructure.

• Automatic scaling: Lambda automatically scales based on the number of incoming requests, adjusting the amount of compute power as needed.

• Pay-per-use: You are charged only for the compute time consumed when your function is actively running (measured in milliseconds). There's no charge when your code is not running.

Key Features

• Event Sources: Lambda integrates with many AWS services as event sources: S3, DynamoDB, SNS, SQS, CloudWatch Events, API Gateway, etc.

• Supported Languages: AWS Lambda supports several programming languages, including Python, Node.js, Java, C#, Ruby, and Go. You can also create custom runtimes.

• Stateless: Lambda functions are stateless by nature, which means each invocation is independent. If you need to persist data, you'd typically use external services like DynamoDB or S3.

• Execution Context: AWS Lambda maintains a temporary execution environment (also called a "container") that can be reused for subsequent invocations, making subsequent calls faster (cold start vs. warm start).

• Concurrency: Lambda can run multiple instances of your function in parallel (concurrent executions). AWS manages the scaling for you automatically.

• Timeout: You can set a maximum execution time for your function (up to 15 minutes). If the function runs longer than the specified timeout, it will be terminated.

• Layers: Lambda layers allow you to include external libraries, dependencies, or custom runtimes with your function without embedding them directly into the code package.

• Pricing: You pay for the number of requests and the duration your code runs (measured in milliseconds). The first 1 million requests and 400,000 GB-seconds of compute time are free each month.

Common Use Cases

• Data processing: Respond to changes in data (like S3 uploads or DynamoDB updates) in real-time.

• Web applications: Use Lambda with API Gateway to create RESTful APIs.

• Automated workflows: Trigger automated tasks based on events from other AWS services.

• Cron jobs: Use Lambda with CloudWatch Events to run scheduled jobs without maintaining a server.

👉 Let's dive deeper into AWS Lambda and cover additional details such as architecture, deployment, performance optimization, security, and advanced use cases.

1. Architecture & Workflow

Lambda's architecture follows a simple flow:

• Event Source: A service or system generates an event. For instance, an image is uploaded to S3, or an HTTP request is made via API Gateway.
• Lambda Trigger: The event triggers the Lambda function to run. Lambda reads the event data and passes it to the function as input.
• Execution Environment: Lambda runs your code in an isolated environment (container) that includes a specific runtime (Node.js, Python, Java, etc.). This environment is short-lived but can persist across invocations (warm starts).
• Return or Response: The Lambda function processes the event and may return a response (e.g., HTTP response via API Gateway) or perform an action (e.g., write to a database)

2. Deployment and Management

Deploying and managing AWS Lambda functions can be done through multiple methods

• AWS Management Console: Allows you to create, edit, and test functions directly from the web interface.

• AWS CLI & SDKs: The AWS CLI (Command Line Interface) allows programmatic interaction with Lambda. You can deploy functions, update them, or invoke them from the command line.

• Infrastructure as Code (IaC):

• AWS CloudFormation: Helps automate the provisioning of Lambda functions alongside other AWS resources.

• Serverless Framework: A popular open-source framework to define, deploy, and manage Lambda functions using configuration files (YAML).

• AWS SAM (Serverless Application Model): SAM is an AWS-specific framework that simplifies the setup of Lambda-based applications using simplified CloudFormation syntax.

• Terraform: A multi-cloud IaC tool that can also manage Lambda deployments.

3. Performance Optimization

1. Cold Start vs Warm Start

Cold Start: When a Lambda function is invoked for the first time (or after some idle time), AWS has to initialize a new execution environment (container). This involves downloading the code, initializing dependencies, and setting up the environment, which causes a slight delay (typically a few hundred milliseconds).

Warm Start: If a container from a previous invocation is available, Lambda reuses it, skipping the initialization process, leading to faster execution times.

Optimizations to Reduce Cold Start Time:

• Use Smaller Packages: Keep your Lambda package size as small as possible to minimize the cold start initialization time.

• Provisioned Concurrency: AWS allows you to keep a specific number of Lambda instances "warm" to avoid cold starts entirely (with an additional cost).

• Avoid Heavy Initialization: Defer or reduce initialization (like opening database connections) until absolutely necessary, or use connection pooling with services like RDS Proxy.

2. Memory Tuning

• Lambda allows you to configure memory allocation between 128 MB and 10 GB. AWS automatically allocates proportional CPU power based on memory.
• Experiment with different memory settings to find the optimal balance between cost and performance (more memory often results in faster execution but costs more per invocation).

4. Security Considerations

• IAM Roles and Policies: Lambda functions require execution roles with appropriate permissions to access other AWS services (e.g., S3 or DynamoDB). Always apply the principle of least privilege, ensuring the Lambda function only has permissions to do what it needs.

• VPC Integration: Lambda can be configured to run inside a Virtual Private Cloud (VPC), giving it secure access to private resources (e.g., RDS databases that aren't publicly accessible). However, be aware that running Lambda inside a VPC may increase cold start times if it's not optimized.

• Encryption: AWS automatically encrypts Lambda data at rest, and you can encrypt environment variables. For more sensitive data, you can use AWS KMS (Key Management Service) for additional encryption and control.

• Environment Variables: Lambda supports environment variables, but ensure that sensitive data (e.g., API keys, credentials) is stored securely using encryption.

5. Monitoring and Debugging

• Amazon CloudWatch: Lambda functions automatically log execution data to Amazon CloudWatch, where you can monitor and view:
• Invocation counts
• Duration (how long the function took to execute)
• Errors (if any occurred during the function execution)
• Memory usage
• Logs of outputs, errors, and debugging information

• AWS X-Ray: AWS X-Ray helps trace the flow of events and the performance of Lambda functions. It can help diagnose performance bottlenecks and trace requests as they pass through multiple AWS services.

6. Advanced Use Cases

• Real-Time Data Processing: Use Lambda to process streaming data from services like Kinesis or DynamoDB Streams.
• ETL (Extract, Transform, Load): Lambda is ideal for transforming and moving data between different AWS services, such as from S3 to Redshift, for data analysis pipelines.
• Machine Learning Inference: You can use pre-trained machine learning models in Lambda for real-time inference (though for heavier workloads, using services like SageMaker might be more appropriate).
• Chatbots and Voice Assistants: Lambda can be integrated with services like Amazon Lex and Alexa to build serverless voice or text-based bots.

7. Limitations

While AWS Lambda is powerful, it has some limitations:

• Execution Time Limit: Lambda functions have a maximum execution time of 15 minutes.

• Ephemeral Storage: Lambda provides temporary storage (/tmp directory) with up to 10 GB of space for each invocation, but this storage is wiped after the function completes.

• File Size Limits: Lambda package deployment size is limited to 50 MB for zipped files (via direct upload) and 250 MB when deployed from S3.

• No Long-Lived Connections: Since Lambda functions are stateless and short-lived, it may not be suitable for applications requiring persistent connections (e.g., WebSockets, long-running data streams).

8. Comparison with Other Compute Services

Lambda isn’t the only compute option in AWS. Here’s how it compares:

• EC2 (Elastic Compute Cloud): EC2 provides virtual machines (VMs) where you manage the operating system and scaling. It is better suited for long-running processes or applications that need to control the underlying OS.

• ECS / EKS (Elastic Container Service / Elastic Kubernetes Service): These are container-based compute services. Use these when you need finer control over container orchestration, scheduling, and networking.

• AWS Fargate: Serverless containers (similar to Lambda but for containers). Fargate abstracts server management while allowing you to run Docker containers without worrying about the underlying infrastructure.

Conclusion

AWS Lambda is a versatile and powerful service ideal for event-driven, stateless, and short-lived workloads. Its automatic scaling, serverless nature, and pay-per-use pricing model make it a go-to choice for building modern, efficient cloud applications. However, for applications requiring long-running processes or persistent storage, alternatives like EC2, ECS, or Fargate may be more suitable.

Example-1: Create an AWS Lambda function in Java (using AWS SDKs) that will be triggered by an S3 bucket object change event (such as uploading or deleting an object)

Prerequisites: Install JDK, Maven, AWS CLI on your local system to create this project.

First, login to your AWS account with 'aws configure' command from AWS CLI

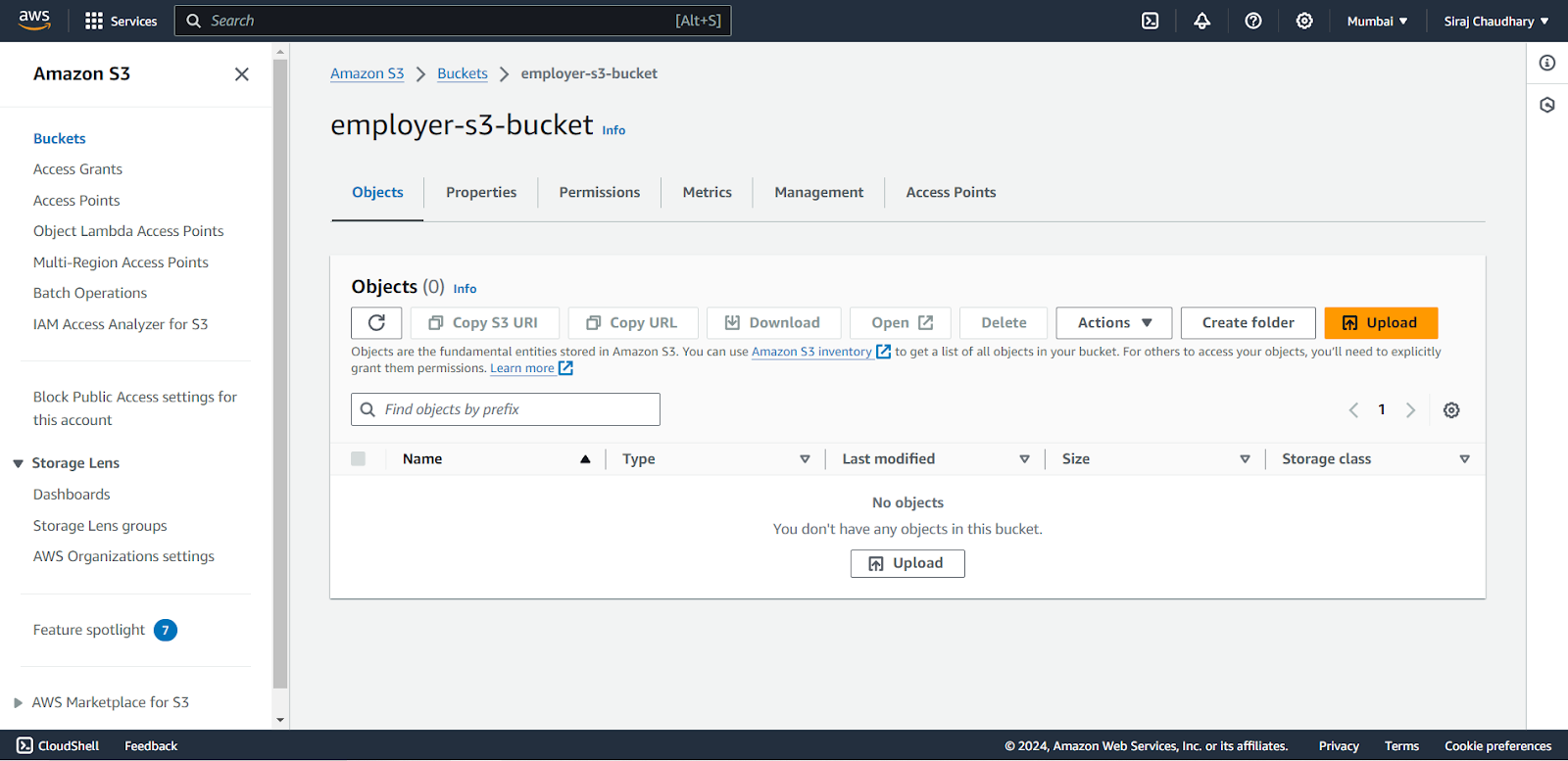

Step1: Create a S3 Bucket from AWS CLI

aws s3 mb s3://employer-s3-bucket --region ap-south-1

Step2: Set up a maven project for AWS Lambda

mvn archetype:generate -DgroupId=com.sirajchaudhary -DartifactId=employer-s3-lambda-handler-service -DarchetypeArtifactId=maven-archetype-quickstart -DinteractiveMode=false

Step3: Modify the pom.xml file to include the AWS Lambda and AWS SDK dependencies

<dependencies>

    <!-- AWS Lambda Java Core -->

    <dependency>

        <groupId>com.amazonaws</groupId>

        <artifactId>aws-lambda-java-core</artifactId>

        <version>1.2.1</version>

    </dependency>



    <!-- AWS SDK for S3 -->

    <dependency>

        <groupId>software.amazon.awssdk</groupId>

        <artifactId>s3</artifactId>

        <version>2.20.0</version>

    </dependency>

    <!-- AWS Lambda Java Events (for handling S3 event payload) -->

    <dependency>

        <groupId>com.amazonaws</groupId>

        <artifactId>aws-lambda-java-events</artifactId>

        <version>3.11.0</version>

    </dependency>

    <!-- AWS Lambda Java Log4J 2 -->

    <dependency>

        <groupId>com.amazonaws</groupId>

        <artifactId>aws-lambda-java-log4j2</artifactId>

        <version>1.5.0</version>

    </dependency>

</dependencies>

<build>

    <plugins>

        <plugin>

            <groupId>org.apache.maven.plugins</groupId>

            <artifactId>maven-shade-plugin</artifactId>

            <version>3.2.1</version>

            <configuration>

                <createDependencyReducedPom>false</createDependencyReducedPom>

                <filters>

                    <filter>

                        <artifact>*:*</artifact>

                        <excludes>

                            <exclude>META-INF/*.SF</exclude>

                            <exclude>META-INF/*.DSA</exclude>

                            <exclude>META-INF/*.RSA</exclude>

                        </excludes>

                    </filter>

                </filters>

            </configuration>

            <executions>

                <execution>

                    <phase>package</phase>

                    <goals>

                        <goal>shade</goal>

                    </goals>

                </execution>

            </executions>

        </plugin>

    </plugins>

</build>

Step4: Implement the Lambda Function. Create a Java class, S3EventHandler, that will handle the S3 event

package com.sirajchaudhary;

import com.amazonaws.services.lambda.runtime.Context;

import com.amazonaws.services.lambda.runtime.RequestHandler;

import com.amazonaws.services.lambda.runtime.events.S3Event;

import software.amazon.awssdk.services.s3.S3Client;

import software.amazon.awssdk.services.s3.model.GetObjectRequest;

import java.io.InputStream;

public class S3EventHandler implements RequestHandler<S3Event, String> {

    @Override

    public String handleRequest(S3Event s3event, Context context) {

        S3Client s3 = S3Client.builder().build();

        s3event.getRecords().forEach(record -> {

            String bucketName = record.getS3().getBucket().getName();

            String objectKey = record.getS3().getObject().getKey();

            context.getLogger().log("Received event for bucket: " + bucketName + ", object: " + objectKey);

            // Example: Fetch the object content from S3

            GetObjectRequest getObjectRequest = GetObjectRequest.builder()

                    .bucket(bucketName)

                    .key(objectKey)

                    .build();

            try (InputStream objectData = s3.getObject(getObjectRequest)) {

                // Process the object data (optional)

                context.getLogger().log("Successfully processed object: " + objectKey);

            } catch (Exception e) {

                context.getLogger().log("Error processing object: " + e.getMessage());

            }

        });

        return "Processed " + s3event.getRecords().size() + " records.";

    }

}

This class will be invoked whenever an S3 event occurs. The handleRequest method receives an S3Event object, which contains details about the event such as the bucket name and object key.

Step5: Package your Lambda function as a .jar file

mvn clean package

Step6: Create the Lambda Function on AWS Management Console

• Navigate to the AWS Lambda Console and create a new Lambda function.
• Choose Author from scratch, set a function name, and choose the runtime as Java 17.
• Upload the .jar file created in the previous step.
• Set up the appropriate IAM role for your Lambda function with necessary permissions for S3.
• In the Lambda Configuration section, under Triggers, add an S3 trigger:
• Select the S3 bucket.
• Set the event type to something like All object create events or any specific event you need (e.g., ObjectCreated).

Click Add trigger -> select source S3 and add your S3 details

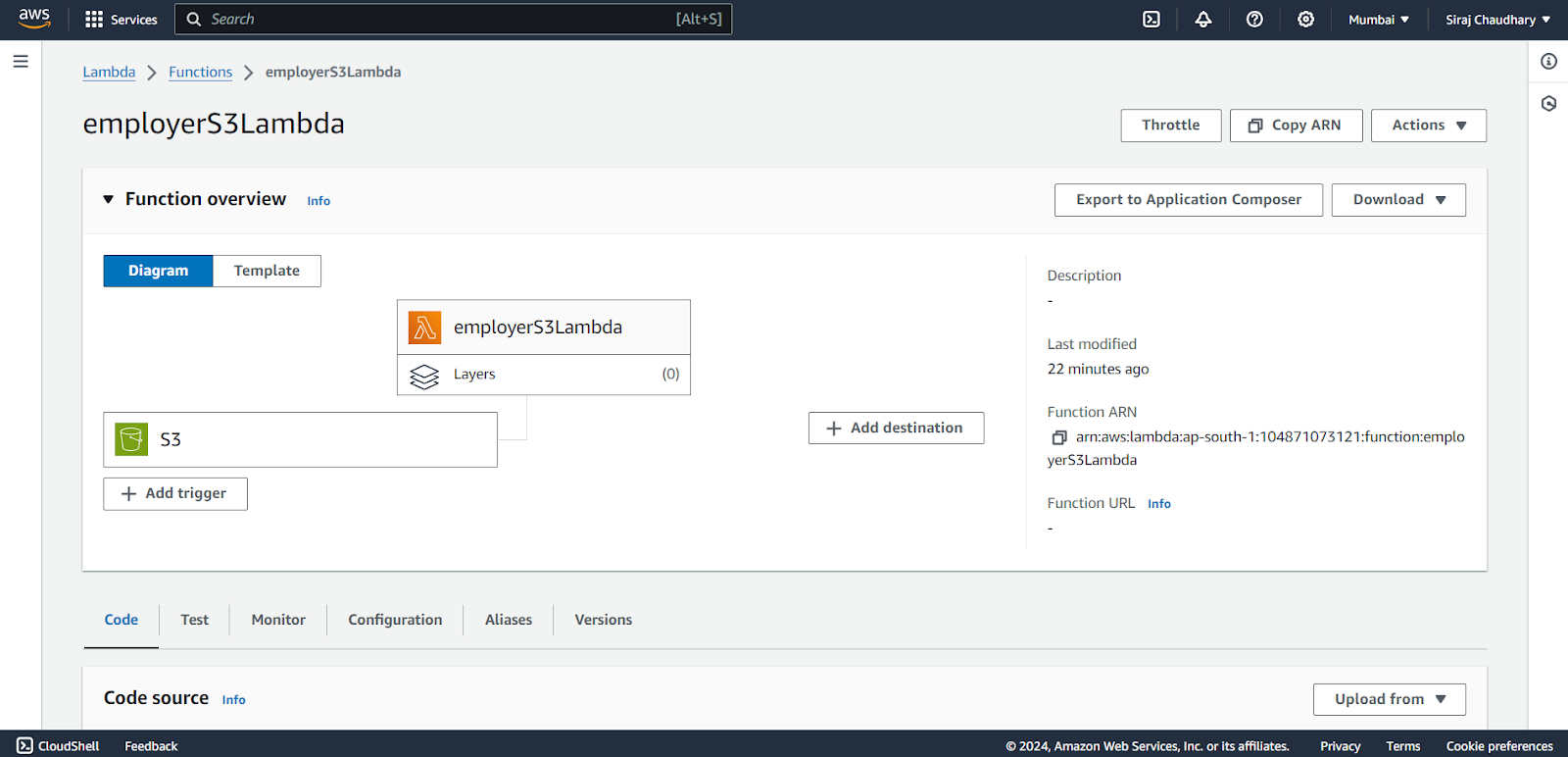

Go to Code section -> Upload from -> .jar file -> upload your application jar

In Code section -> Runtime setting (Edit) -> here you have to add your handler method details e.g. com.sirajchaudhary.S3EventHandler::handleRequest

Step7: Test the Lambda Function

• Upload a file to the S3 bucket you configured the trigger for.

👉 View logs in CloudWatch

Any logs or debug information will be available in the CloudWatch Logs associated with the Lambda function.

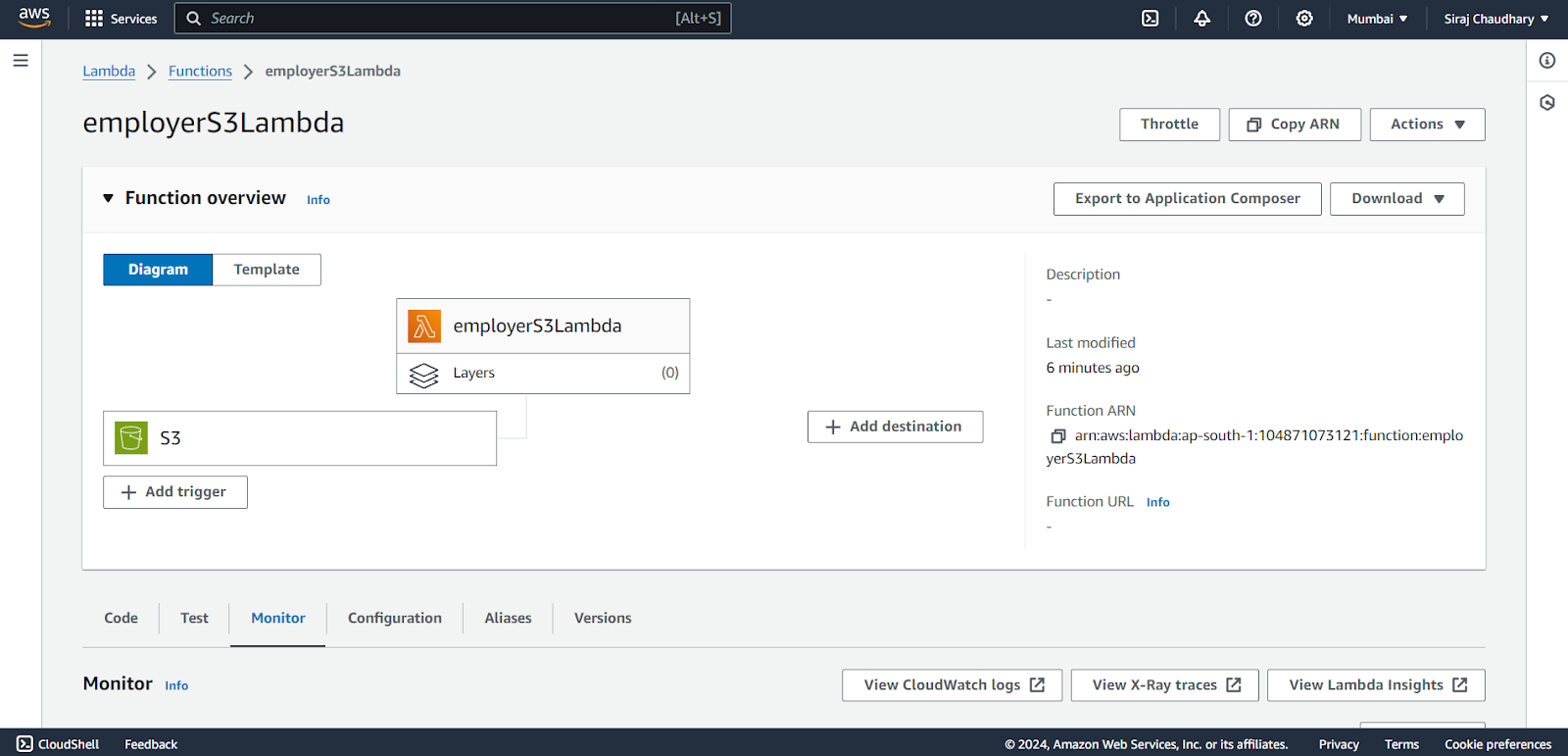

Go to the Lambda console -> click Monitor -> click View CloudWatch logs -> click Log stream ID -> see the logs and ensure the Lambda function was triggered correctly.

Summary

• You created an AWS Lambda function in Java that listens to S3 object changes.
• The Lambda function is triggered by S3 events and processes the object based on the event details.

👉 The Serverless Application Model (SAM)

AWS SAM is an open-source framework developed by Amazon Web Services (AWS) to simplify building, testing, and deploying serverless applications (e.g. AWS Lambda applications).

Here are some things you can do with AWS SAM

• Build, test, debug, and deploy: Use the AWS SAM Command Line Interface (CLI) to build, transform, deploy, debug, package, initialize, and sync your application project directory.
• Deploy gradually: AWS SAM can automatically create aliases for new versions of your Lambda function, and gradually shift traffic to the new version.
• Roll back changes: If an update doesn't work, you can roll back the changes.
• Verify configuration: AWS SAM can define pre- and post-traffic test functions to verify that your application is configured correctly.
• Activate X-Ray tracing: You can activate X-Ray tracing for your Lambda functions.

AWS SAM is a specialized abstraction of CloudFormation that targets serverless applications. SAM simplifies the process of creating serverless applications with fewer lines of code compared to traditional CloudFormation templates.

AWS SAM uses a YAML file (or JSON) where you define your serverless application resources. These templates are an extension of AWS CloudFormation templates but are simplified to allow quick serverless development.

AWS SAM commands

• sam build compiles and prepares your code for deployment.
• sam package packages the application and uploads the artifacts to S3.
• sam deploy simplifies deployment by managing CloudFormation stacks and resources.
• sam deploy --guided is an interactive deployment process that asks questions to configure your deployment.
• sam local invoke simulates Lambda function execution locally.
• sam local start-api runs API Gateway locally for testing.
• sam local start-lambda allows testing Lambda functions in a local Lambda environment.

AWS SAM supports integration with IDEs for debugging Lambda functions locally.

Typical workflow of AWS SAM

• Write SAM Template: Define your serverless application in a template.yaml file.
• Build: Run sam build to compile your functions and prepare the deployment package.
• Test Locally: Use sam local invoke or sam local start-api to test your application.
• Deploy: Use sam deploy --guided to deploy your application to AWS.

Advantages of AWS SAM

• Simplifies Infrastructure as Code: Makes it easier to create serverless applications with CloudFormation.
• Local Testing: Enables local testing of serverless apps, which can reduce development time.
• Integration with AWS: Deep integration with AWS services such as Lambda, API Gateway, and CloudFormation.

Example-2: Create an AWS Lambda function in Java (using AWS SAM framework and AWS SDKs) which will be triggered by an API Gateway event (E.g. whenever the API Gateway URL will be hit the Lambda function will be triggered).

This Lambda function will be triggered by an API Gateway whenever API Gateway URL will be accessed. So in this Lambda function you can implement more logics like authentication, authorization for the incoming HTTP requests to API Gateway.

We use AWS SAM framework to create, build and deploy Lambda function project.

We use one AWS SAM framework's java template to create Lambda function project and use AWS SAM CLI to build and deploy the Lambda function into AWS. This template creates a boilerplate Lambda function which has a code to create an API Gateway once this get deployed into AWS. We will be able to access API Gateway with its given URL /hello. Whenever we will access the API Gateway URL the Lambda function will be triggered and the code inside Lambda function will be executed.

You can change the default project's code (Lambda function) provided by the template and can write your own Lambda functions and logics. To keep this simple we will not extend this project with more complex logics we will just generate a boilerplate code, build and deploy it into AWS using AWS SAM framework.

Prerequisites: Install JDK17, Maven, AWS CLI, AWS SAM on local system to create this project.

Note: Check which JDK versions get supported by your currently installed AWS SAM CLI using command "sam build --help" and use same JDK version on your local system while generating project template.

First, login to your AWS account with 'aws configure' command from AWS CLI

Step1: Create an AWS SAM Project using a java template with following command

sam init

• When prompted:

• Choose: 1 - AWS Quick Start Templates
• Choose the project type: 1 - Hello World Example
• Select the runtime: 8 - java17

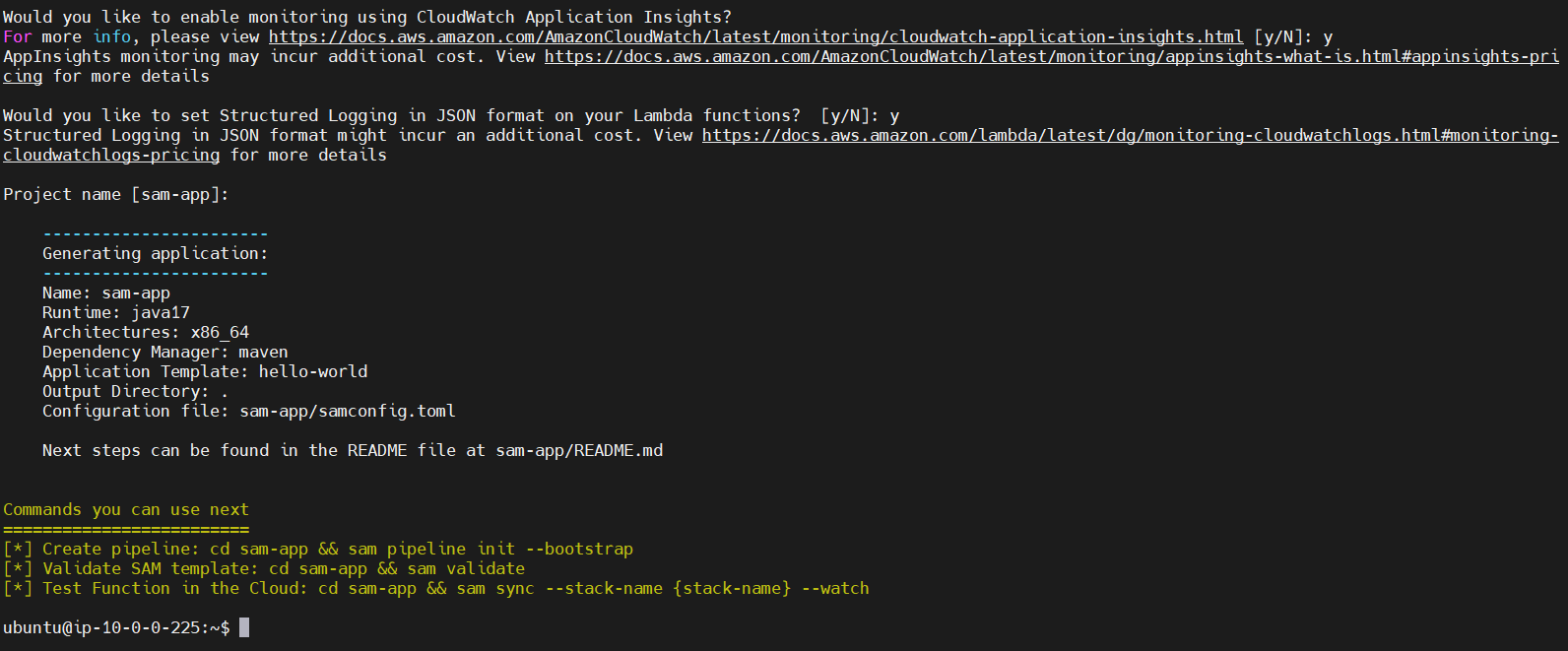

• ..so on as shown in below snapshot. The project skeleton will be created as per these parameter.

This will create a basic SAM application with a Lambda function.

project skeleton is created with boilerplate code. Read "README.md" file which provide a bunch of command with definitions which you can run on this project.

In this boilerplate Lambda function, if you notice, there is a code which creates an API Gateway when we deploy Lambda function into AWS

Step2: Build & Deploy given boilerplate code as it is into AWS using AWS SAM CLI

mvn clean package

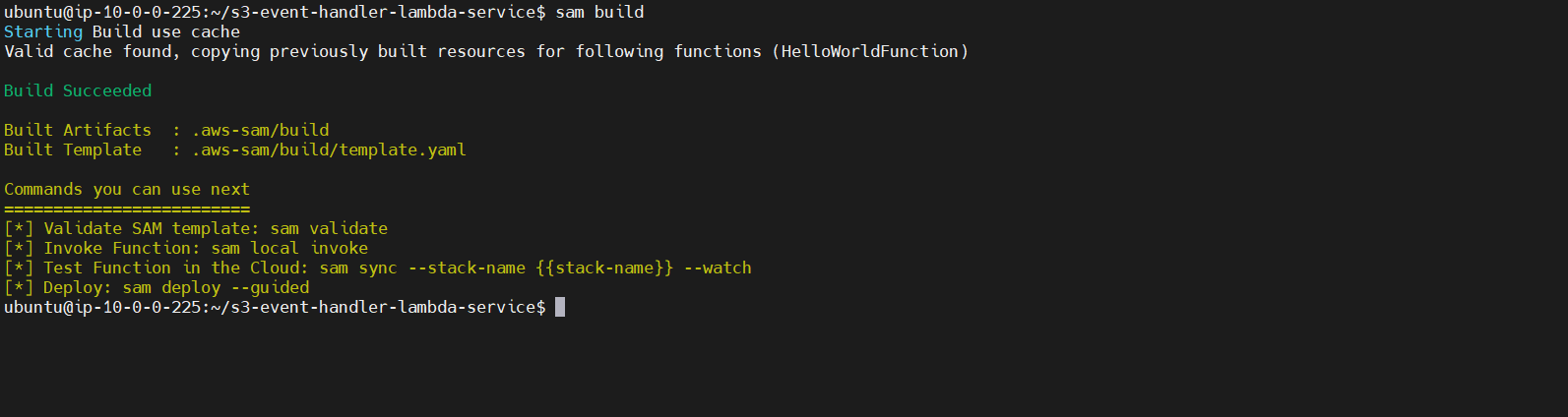

sam build

sam validate

sam deploy --guided

If it ask to create a S3 bucket at time of deployment than you can create it with follwoing command. This bucket will be used to save build artifacts.

aws s3 mb s3://<GIVEN-BUCKET-NAME>

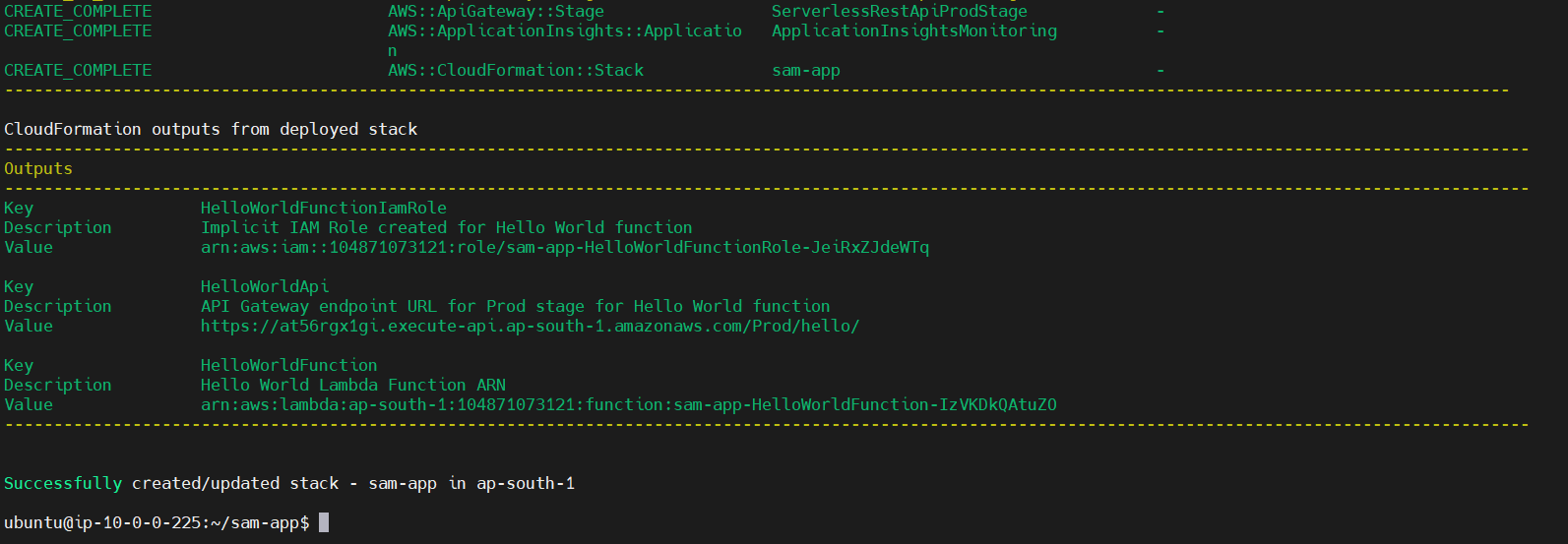

The output provide many useful information like API Gateway URL which once we hit the Lambda function will be executed

https://at56rgx1gi.execute-api.ap-south-1.amazonaws.com/Prod/hello/

The project is deployed into AWS. A CloudFormation stack name sam-app is created. You can check created resources in API Gateway, Lambda console, CloudFormation, S3.

Step3: Test API

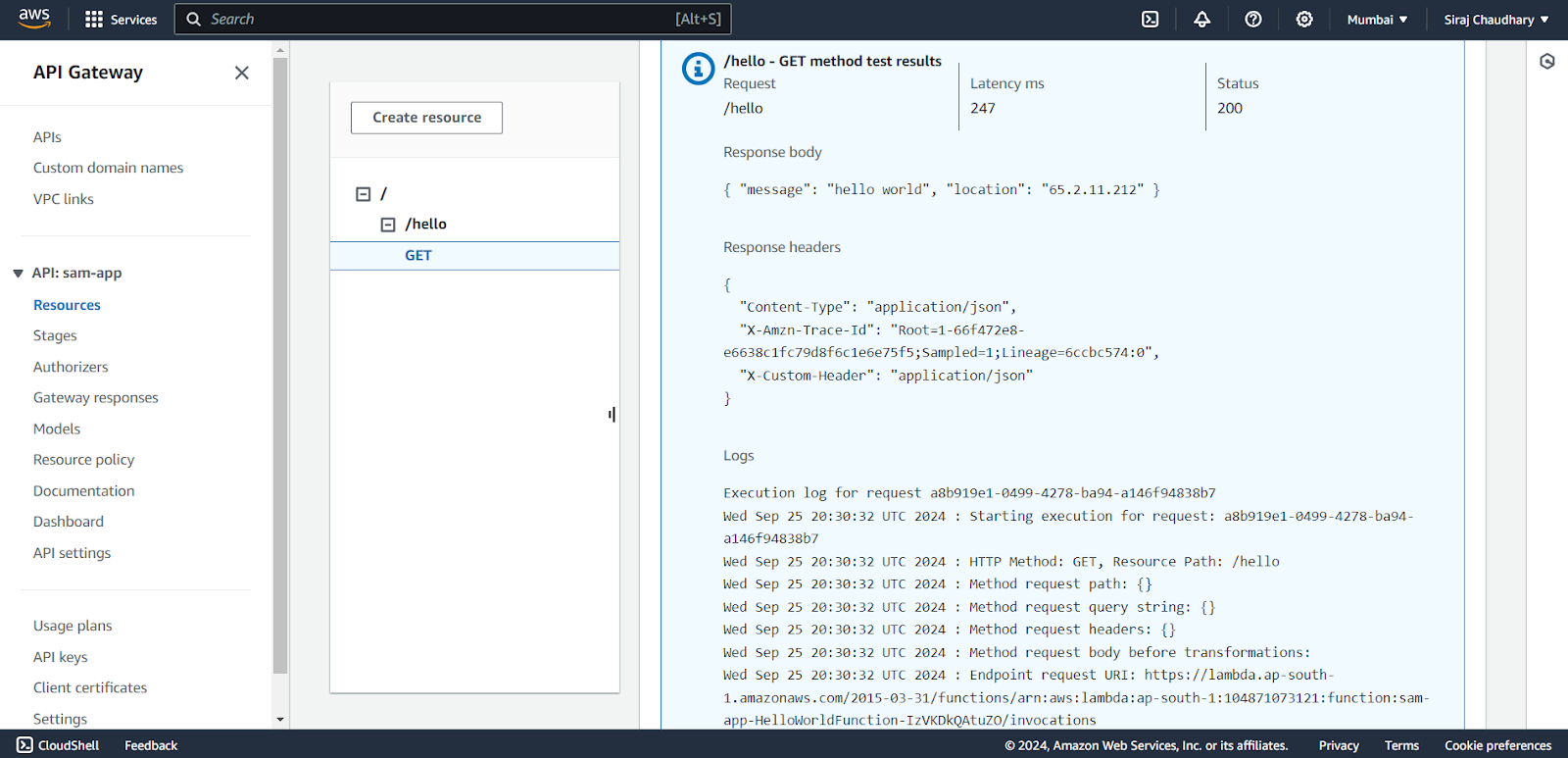

Go to API Gateway -> Select API (sam-app) -> Select Method (GET) -> Test

Step4: Clean up. Delete all resource (CloudFormation stack) associated with this project

sam delete --stack-name sam-app

Step5: You can customize given boilerplate Lambda function or create a new Labmda function as per your business needs and deploy it.

E.g. here is updated the Lambda function which is now a simple hello() function return a string.

You need to change unit tests in AppTest.java as per new logic of App.java.

You also have to update template.yaml as per your updated Lambda function

Now simply build maven project with command 'mvn clean package'

Than build and deploy SAM project with commands 'sam build' and 'sam deploy'

You can test deployed Lambda function in AWS Lambda console

Note: It did not create any API Gateway now as this time we didn't define it in Lambda function.

👉 Note: You can run and test this SAM framework project locally as well. So you don't need to deploy the application into AWS and than test. You need to have docker installed to fire following command and run the SAM application on your local system.

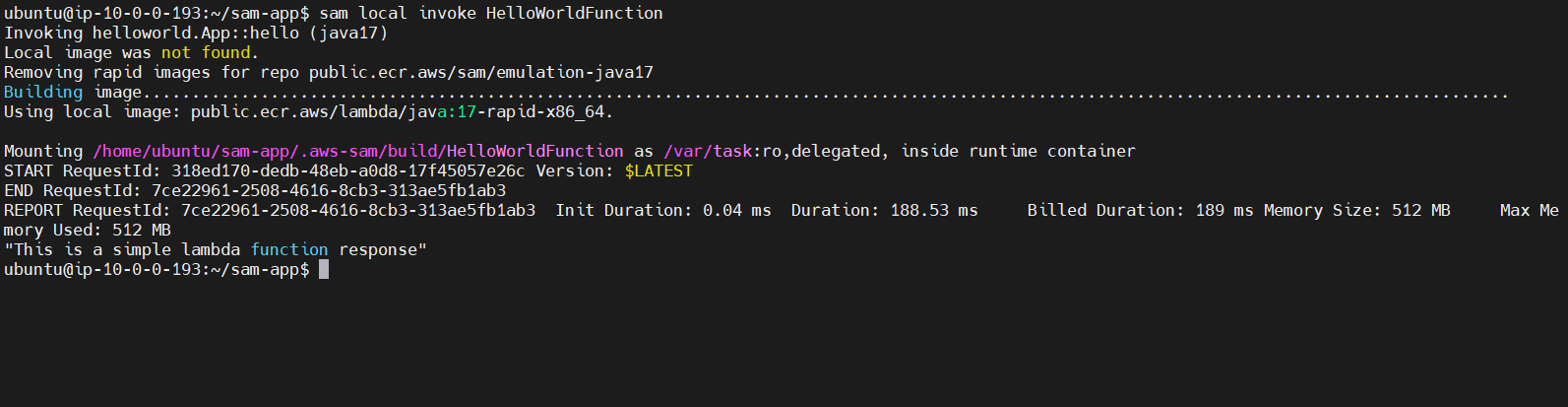

sam local invoke HelloWorldFunction

You can also pass parameters, if any, to your Lambada function using event.json file.

sam local invoke HelloWorldFunction --event events/event.json

Finally, delete the created stack completely

sam delete --stack-name sam-app
